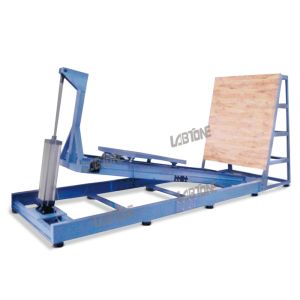

300kg Payload Package Inclined Shock Test System With ASTM Santandard

Name: 300kg Payload Package Inclined Shock Test System With ASTM Santandard
Brand: LABTONE
Price: 1 USD

Brand Name : LABTONE

Model Number : IST300

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiable

Payment Terms : T/T

Supply Ability : 25 Sets / Month

Delivery Time : 45-60 working days

Packaging Details : International wooden case

Max. Payload : 300kg

Max. Dimension of Specimen : 1200x1200x1600 mm

Max. Shock Distance : 3-5 M (discussible)

Impact Velocity Range : 1 - 2.1 m/s

Stanards : ASTM, ISTA, ISO

Sliding Trolley Size : 1200x1200 mm

Contact Now

300kg Payload Package Inclined Impact Testing Machine with ASTM Santandard

Features:

■The system is operated pneumatically, fast operation, safe and reliable.

■ The angle between the guide surface and the horizontal level is 10°.

■ Perfect protection device and safety interlock device to ensure the safety of the operator.

■ Accept special customization, additional installation speed measuring device, provide accurate impact velocity measurement.

Product Application:

Inclined impact tester is simulated the impact strength of packaging in the real circumstance of transportation, for example, the transportation of goods. This product is applied to the scientific research institutions, colleges, packaging technique test centers, packaging material manufacturers and foreign trade or transportation departments.

Technical Parameter:

Max. Payload	200, 300 KG
Max. Impact Velocity	2.8 m/s
Max. Shock Distance	5M(or discussion)
Tolerance of Shock Distance	±3%
Max. Size of Specimen	120012001600 mm
Sliding trolley	600×550×2500 mm
Impact base size	1800*2000 mm
Power	3phase 380v 50/60Hz
Standards	JB/T6868-93 ISO2248-1972(E)

Product Detail:

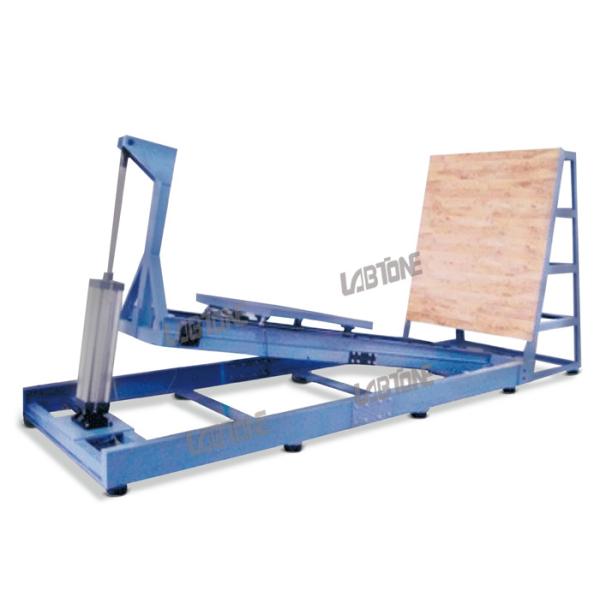

300kg Payload Package Inclined Shock Test System With ASTM Santandard

Control Box

300kg Payload Package Inclined Shock Test System With ASTM Santandard
